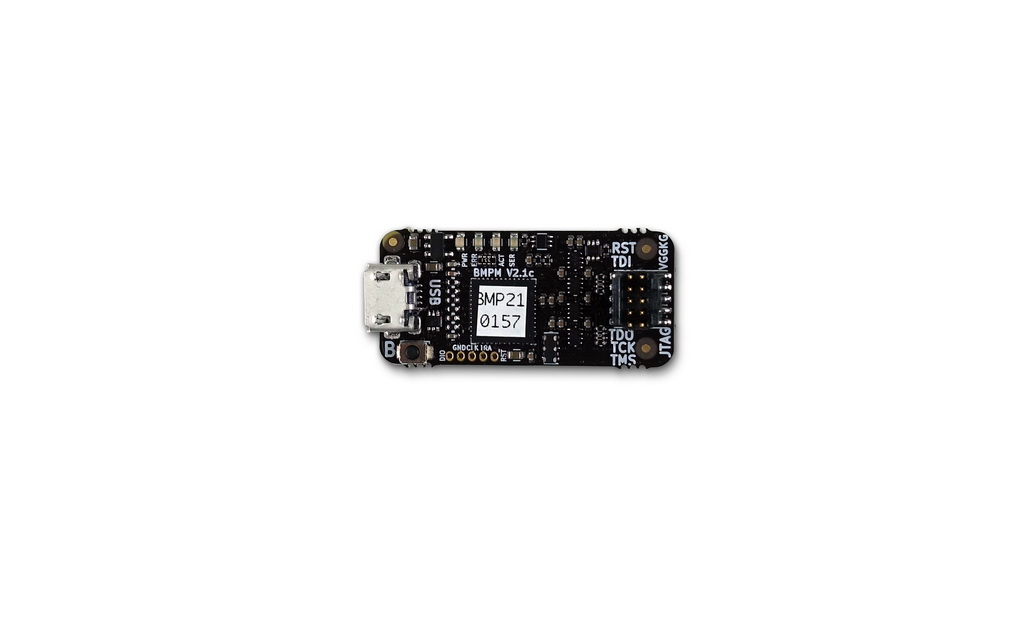

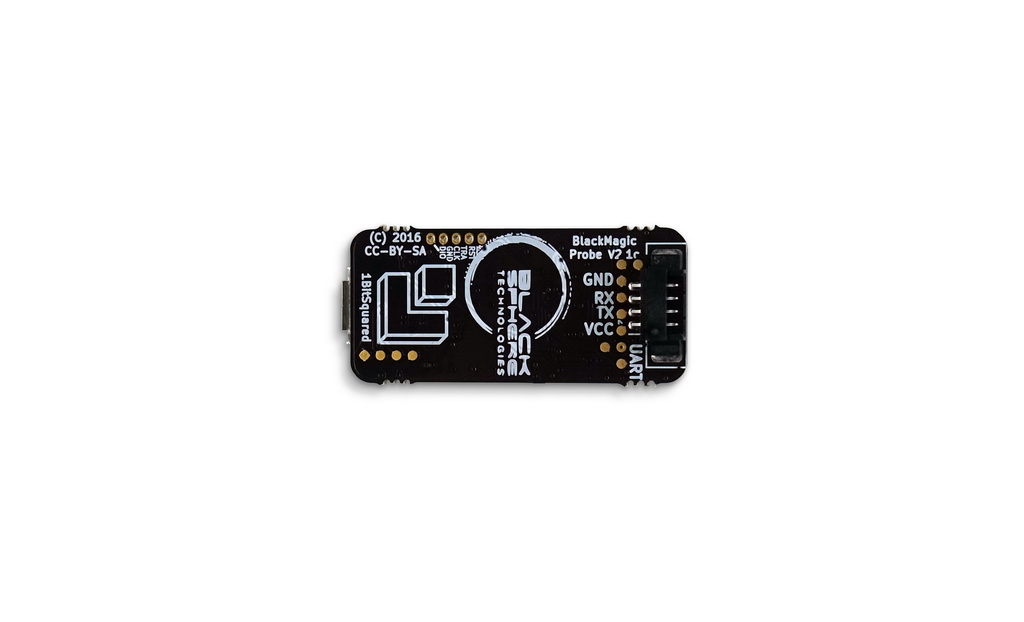

The Black Magic Probe was designed by 1BitSquared in collaboration with Black Sphere Technologies and is a JTAG and SWD Adapter used for programming and debugging ARM Cortex MCUs.
Its the best friend of any ARM microcontroller developer as it gets rid of intermediate programs like OpenOCD or STLink server. This makes the operation faster and more reliable. You just open your GNU Debugger (GDB) and select the virtual com port offered by BMP as your extended remote target.
Features:
- GDB server port without the need of special PC side software.
- TTL level serial interface
- SWD and JTAG support
- Supports 1.7V up to 5V targets
- Can provide 3.3V to the target (up to 100mA)
- Semihosting support
- Works on Linux, Mac and Windows
- Works with Eclipse and other Integrated Development Environments
- Supports STM32, LPC11, LM3S
- DroneCode compatible

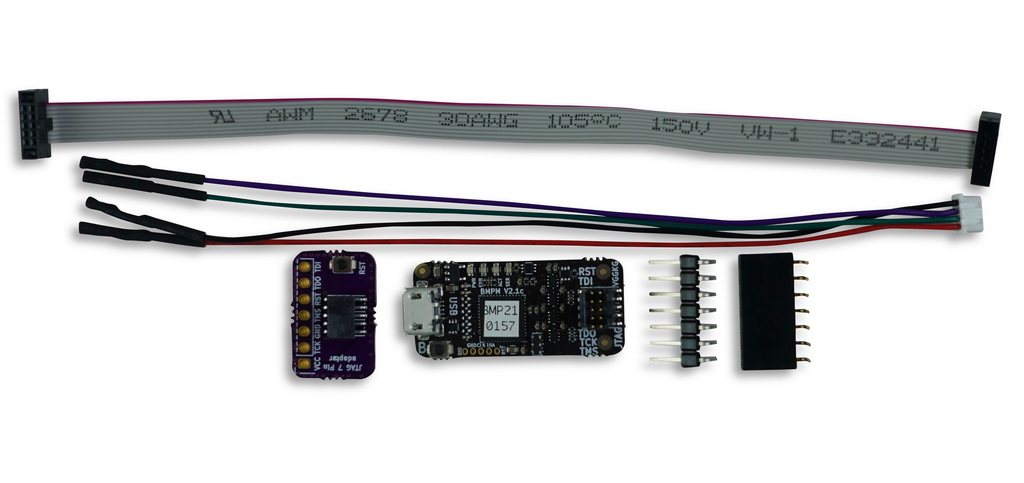

Comes /w Serial Interface Cable, 7 pin JTAG Adapter Expansion Board (un-assembled)
| Brand | 1-Bit Squared |
|---|
